FC8600 Series high-performance roll feed cutting plotter is an industry leader for sign makers, graphic artists, automotive aftermarket professionals, countertop installers and other related users. Graphtec FC8600 vinyl cutter sets an industry standard for quality and durability, and is now an even more powerful tool for any professional in the search of the highest-quality and most technically-advanced cutter on the market. Graphtec's sophisticated and proprietary technology, the Tangential Control mode, allows for complete elimination of distorted, rounded, or lifted corners, even when highly intricate design cutting is required. This innovative features allows the Graphtec FC8600 to cut small text strings on vinyl.
The FC8600 series is the flagship model of Graphtec America. Known around the world for its high precision cutting, and build quality, the FC8600 is the ultimate finishing solution for the signage, apparel, and automotive markets. Included Graphtec Pro Studio and Cutting Master 4 software provide all of the tools needed to create stunning print & cut signage, decals, apparel and more. Utilizing the strength of the Advanced Registration Mark Sensing system (ARMS), and its 600g of down force, even the most challenging medias such as high intensity reflective are cleanly cut.
Graphtec FC8600 series high-performance roll feed cutting plotter is an industry leader for sign makers, graphic artists, and other related users. The FC8600 series features a maximum cutting speed of 58.5 in/sec, 4.0 G maximum acceleration, and 20 to 600 g selectable cutting forces, allowing users to process diamond grade, high-intensity reflective film, sandblast resist rubber, automotive window & paint protection films, self-adhesive vinyl, Amberlith™ and Rubylith™, among other media types.
BEST PERFORMING CUTTER IN ITS CLASS
FC8600 series premiere cutting plotter providing higher productivity and greater ease of use.
Fastest cutting speed in its class:
58.5 inches per second ( 4ft 10.46 in/s, 1,485 mm/s ) maximum cutting speed for the higher productivity.
Highest cutting force in its class:
5.88 N (600 gf) maximum cutting force for a wide variety of applications. Expands the range of
possible cutting media such as thick film.
Reliable long-length tracking:
Guaranteed 50 ft tracking and accuracy. (*1)
Includes basket and push rollers with 3 different pressure settings (*2) to provide a more stable media feed and to support a wider range of media.
*1. Operated with Graphtec specified media and conditions.
*2. The center push rollers have 3 pressure settings, the end push rollers have two pressure settings.
Graphtec FC8600 series roll feed vinyl cutter is available in five widths:
FC8600-60, max. cutting W 24" (61 cm)
FC8600-75, max. cutting W 30" (76.2 cm)
FC8600-100, max. cutting W 42" (106.7 cm)
FC8600-130, max. cutting W 54" (137.2 cm)
FC8600-160, max. cutting W 64" (162.6 cm)
This performance class allows you to process diamond grade, high-intensity reflective film, self-adhesive vinyl, sandblast-resist rubber, automotive window and paint protection film and other media.
Prismatic Grade Reflective Sheeting
PERF CUT Enabled High Performance Cutters Finish The Job
With its included perf cut enabled custom tool settings - you have the ability to perforate cut all the way through your pre printed vinyl media creating pop-out, full-color stickers and decals without damaging your blade or cutting plotter machine.

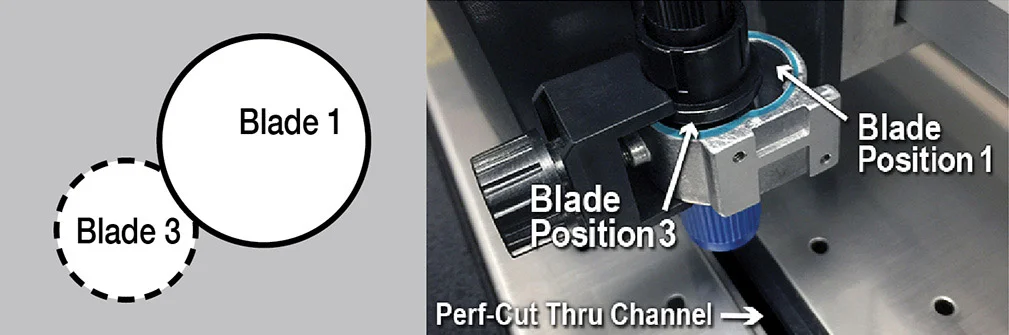

Blade position 1 is for contour kiss cutting of vinyl media. Blade position 3 allows the blade to cut all the way through the media into the channel without damaging the cutting strip and blade.
Perforation cutting is performed by controlling the cutting force instead of blade up/down movements, increasing throughput. This is perfect for cutting separation lines for tearing out labels, fold lines for POP signs, and others.
Auto Mark Detection
The first registration mark is automatically detected within a wide search area; this eliminates the need to manually move the sensor near the registration mark position. Subsequent marks are automatically located which improves the operation of the registration mark searching.
Segment Area Compensation
A 4-point axis alignment is performed for each segmented area.

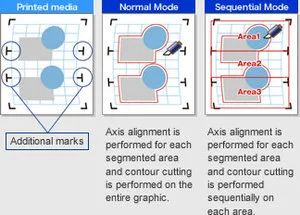

In Normal Mode, this is performed by reading the marks in the middle of the feeding direction for the entire graphic and then cutting the entire graphic, providing high-precision alignment for long length Print & Cut applications.
In the new Sequential Mode, contour cutting is performed sequentially in each segmented area. Media movement is limited to the smaller area being cut, improving accuracy and tracking for heavier media or media that has been laminated.
* Normal mode is available when Graphtec Studio, Graphtec Pro Studio, Cutting Master 2/3/4, or Plotter Controller software is used.
* Sequential mode is available when Graphtec Studio (ver. 2.1.200 or later) or Cutting Master 3 (ver. 2.1.211 or later) is used.
* This function is available in firmware version 2.10 or later.
When the design is printed with the matrix copy function, the action of reading the marks and contour cutting is repeated for each copy. It significantly improve productivity for Print & Cut.
* This function is available when the Graphtec Studio, Graphtec Pro Studio, Cutting Master 2/3/4 software is used.
ISM (Intelligent Scan Mode)
The ISM incorporates a new scanning algorithm that not only expands the cutting range of compatible media, but also reduces scan times and increases mark scanning success. Registration marks are also detectable on colored media and textured media, such as glossy laminated materials that were difficult using the conventional method.
* Media must be within the specification in range. Marks may not be detected due to poor print quality or media surface.
* This function is available in firmware version 2.10 or later.
|Configuration||Grit rolling type|
|Drive method||Digital servo drive|
|Max. cutting area (W x L) (*1)||
2 ft x 164 ft
610 mm x 50 m
2 ft 6 in x 164 ft
762 mm x 50 m
3 ft 6 in x 164 ft
1067 mm x 50 m
4 ft 6 in x 164 ft
1372 mm x 50 m
5 ft 4 in x 164 ft
1626 mm x 50 m
|Cutting area of guaranteed accuracy (*2)||23.23 in x 50 ft||29.21 in x 50 ft||
41 in x 32 ft,
35.2 in x 50 ft
53 in x 32 ft,
35.2 in x 50 ft
63 in x 32 ft,
35.2 in x 50 ft
|Mountable media width||
Min. 1.97 in
Min. 1.97 in
Min. 1.97 in
Min. 1.97 in
Min. 1.97 in
|Max. cross cut width||2 ft 4.9 in (734 mm)||2 ft 10 in (886 mm)||3 ft 10.88 in (1191 mm)||4 ft 10.9 in (1496 mm)||5 ft 8.9 in (1750 mm)|
|Number of push rollers||2 rollers||2 rollers||3 rollers||3 rollers||4 rollers|
|Max. cutting speed||4 ft 10.46 in/s (1485 mm/s) at 45° direction|
|Axial acceleration||Max. 39.2 m/s2 (4 G) in 8 steps|
|Cutting force||Max. 5.88 N (600 gf) in 48 steps|
|Mechanical resolution||0.005 mm|
|Programmable resolution||GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL™: 0.025 mm|
|Distance accuracy (*2)||Max. 0.1 mm or 0.1 % of plotted length|
|Repeatability (*2)||Max. 0.1 mm in plot up to 2 m (excluding the expansion and contraction of the media)|
|Minimum character size||Approx. 3 mm alphanumeric (varies depending on character font and media)|
|Mountable number of tools||1 tool (cutting blade, plotting pen or pouncing tool) in standard;
2 tools (cutting blade and plotting pen) when second penholder (optional) is installed
|Blade types||Supersteel (0.9 mm or 1.5 mm diameter)|
|Pen types||Water-based fiber-tip pen, Oil-based ballpoint pen|
|Pouncing tool type||Steel pin 1.2 mm diameter, required optional pouncing tool (PPA 33-TP12)|
|Media types (*3)||Self-adhesive marking film (vinyl, fluorescent, reflective, high-intensity reflective film) up to 0.25 mm thick,
Sandblast resist rubber up to 1 mm thick
|Compatible paper for pouncing||Regular paper from 0.06 to 0.13 mm thick|
|Light pointer||Built into the tool carriage|
|Cross-cutter||Built into the tool carriage|
|Perforation cutting||Supported (performed by force control)|
|Registration mark sensing system||Scans the mark by optical sensor (ARMS5.0), Segment area and Multiple-mark compensation, 4-points axis alignment, Auto mark detect|
|Standard interface||USB2.0 (High speed), RS-232C, and Ethernet (10BASE-T/100BASE-TX)|
|Buffer memory||2 MB|
|Command sets||GP-GL / HP-GL™ emulation (Set by menu or command, and selects from GP-GL, HP-GL™, or Auto select)|
|Condition settings||Dual configuration (save two (2) user settings with eight (8) separate condition setting for each user)|
|Display||Graphic type LCD (3-inch, backlight)|
|Power source||100 V to 240 V AC, 50 / 60 Hz|
|Power consumption||Max. 160 VA|
|Operating environment||10 to 35 °C, 35 to 75 % R.H. (non-condensing)|
|Guaranteed accuracy environment||16 to 32 °C, 35 to 70 % R.H. (non-condensing)|
|External dimensions (W x D x H)||
Approx. 44" x 28" x 48"
(1120 x 711 x 1219 mm)
Approx. 50" x 28" x 48"
(1270 x 711 x 1219 mm)
Approx. 61.8" x 28" x 48"
(1570 x 715 x 1219 mm)
Approx. 73.6" x 28" x 48"
(1870 x 711 x 1219 mm)
Approx. 84" x 28" x 48"
(2130 x 711 x 1219 mm)
|Weight||Approx. 38 kgs / 106 lbs
|Approx. 52 kgs / 115 lbs
|Approx. 60 kgs / 133 lbs
|Approx. 68 kgs / 150 lbs
|Approx. 73 kgs / 161 lbs
|Included software (*4)||Windows driver, Plotter controller, Graphtec Pro Studio (*5),
Cutting Master 4, Graphtec Studio for Mac
|Compatible OS (*4)||Windows 10 / 8.1 / 8 / 7
Mac OS 10.7 to 10.12
|Compatible Standards||UL60950-1, cUL, CE mark (Low voltage and EMC), KC mark (Low voltage and EMC)|
*1. When the 2nd pen holder is installed, the maximum cutting width is changed. (FC8600-60: 601 mm, FC8600-75: 753 mm, FC8600-100: 1053 mm, FC8600-130: 1352 mm, FC8600-160: 1613 mm)
*2. Operated with Graphtec specified media and conditions. In long-length cutting, the basket is used.
*3. When some grades of high-intensity reflective film is used, the using CB15UA/CB15UA-K30 blade and reinforcing the backing sheet of the media are recommended.
*4. For more information about compatibility of the OS or application software, please check the Graphtec website or contact your local representative of Graphtec.
*5. The software can be used by downloading from Graphtec website.
Looking for quality vinyl cutter machine for commercial, intermedia or entry level, Graphtec can help your vinyl cutting process become easier and improve productivity. Graphtec globally manufactures hight quality vinyl cutter machines. With years of experience in plot cutter, Graphtec is industry leader in desktop vinyl cutter, desktop vinyl cutter machine, sticker cutter, sticker cutter machine, sticker cutting machine. Graphtec is trusted by world renowned organizations around the world, our cut plotter precisely cut vinyl sheet and cut vinyl roll. If you are looking for the high quality vinyl roll feed cutters, Graphtec specialists are onsite to provide you guidelines on how to choose roll feed cutter machine or flatbed cutter machine to suit your production needs, we have you covered!
|Power cord||1||The type of cord is different by destination|
|Cutting blade holder||1||PHP33-CB09N-HS|
|Fiber-tip pen holder||1||PHP31-FIBER|
|Water-based fiber-tip pen||1||KF700-BK (black ink)|
|Stand||1||Parts kit of stand|
|Media stocker||1||Set of stock rollers and mounting brackets (Installed on the stand)|
|Basket||PG0039||1||Parts kit for FC8600-60|
|PG0040||Parts kit for FC8600-75|
|PG0041||Parts kit for FC8600-100|
|PG0042||Parts kit for FC8600-130|
|PG0043||Parts kit for FC8600-160|
|USB cable||1||Cable for USB2.0, 2.9m long|
|DVD-ROM||1||User manual (PDF format), Windows driver, Software (Plotter controller, Graphtec Pro Studio, Cutting Master 4)|
|Manual||2||Quick start and safety guide|
|Additional Media Stocker||RSK0020||For FC8600-60 (Stock roller, bracket)|
|RSK0021||For FC8600-75 (Stock roller, bracket)|
|RSK0022||For FC8600-100 (Stock roller, bracket)|
|RSK0023||For FC8600-130 (Stock roller, bracket)|
|RSK0024||For FC8600-160 (Stock roller, bracket)|
|2nd pen holder||ECK0009||For dual tool configuration (dealer option)|
|Flange||OPH-A21||Flange for media holding|
|Additional Push Roller||OPH-A22||One additional push roller|
|Cutting blade holder||PHP33-CB09N-HS||For CB09U series blade||1 set/pack|
|PHP33-CB15N-HS||For CB15U series blade||1 set/pack|
|PHP35-CB09-HS||For CB09U series blade||1 set/pack|
|PHP35-CB15-HS||For CB15U series blade||1 set/pack|
|Cutting blade||CB09UB-5||0.9mm dia. 45º angle, Supersteel||5 blades/pack|
|CB09UB-K60-5||0.9mm dia. 30º angle, for thin film (Japan 60º)||5 blades/pack|
|CB15U-5||1.5mm dia. 45º angle, supersteel||5 blades/pack|
|CB15U-K30-5||1.5mm dia. 30º angle, for sandblast rubber (Japan 60º)||5 blades/pack|
|CB15U-K20-2SP||1.5mm dia. 80º angle, for sandblast rubber (Japan 20º)||2 blades/pack|
|CB15UA-5||1.5mm dia. 45º angle, for high intensity reflective film||5 blades/pack|
|CB15UA-K30-5||1.5mm dia. 60º angle, for high intensity reflective film (Japan 30º)||5 blades/pack|
|Cross-cutter blade||CT01H||Standard type||1 blade/pack|
|CT02U||High durability type||1 blade/pack|
|Water-based fiber-tip pen, and pen holder||KF700-BK||Pen (black)||10 pens/pack|
|KF700-RD||Pen (red)||10 pens/pack|
|KF700-BL||Pen (blue)||10 pens/pack|
|PHP31-FIBER||Pen holder for KF700 series pen||1 set/pack|
|Oil-based ballpoint pen, and pen holder||KB700-BK||Pen (black)||10 pens/pack|
|PHP34-BALL||Pen holder for KB700 pen||1 set/pack|
|Pouncing tool||PPA33-TP12||Steel pin 1.2 mm dia.||1 set/pack|
