Intro

The FXC2000 flatbed cutter is the ultimate solution for prototyping and small production runs of rigid packaging media and other sheet fed materials. With Graphtec’s medium to large flatbed cutting plotters, you have the right tool for contour cutting without requiring a die. Reduce media waste and processing time with included, dedicated software.

Added offline, USB operation enables operators of all skill levels to process various types of media for cutting.

Up to 1 Kg Cutting Force & 400 mm/s Cutting Speed

Interface: Ethernet, USB2.0 and Serial RS-232C | Intuitive 3.7” LCD Screen | Digital Servo Motor USB Flash Memory for Offline Operation | Win & Mac Compatible

New Flatbed Cutter, Table Top Cutter, Cardboard Cutter, Package Thick Paper Cutter, Sublimation Cutting Plotter, Vinyl Cutter, Vinyl Cutting Machine, Die Cutting Machine, Graphtec Vinyl Cutter Graphtec FCX2000 No Compromise Low Cost, Die Free Cutting and Processing

Models

FCX2000-60 (VC)  36”x24”

FCX2000-120 (VC)  36”x47.2”

FCX2000-180 (VC)  36”x70.8”



Table size in the Line-up

3 different table size with choice of vacuum suction or electrostatic media-hold down methods depending on application.

FCX2000-60 (VC)

Flatbed Cutter, Table Top Cutter, Cardboard Cutter, Package Thick Paper Cutter, Sublimation Cutting Plotter, Vinyl Cutter, Vinyl Cutting Machine, Die Cutting Machine, Graphtec Vinyl Cutter Graphtec FCX2000-60 Sizes and Measurement

FCX2000-120 (VC)

Flatbed Cutter, Table Top Cutter, Cardboard Cutter, Package Thick Paper Cutter, Sublimation Cutting Plotter, Vinyl Cutter, Vinyl Cutting Machine, Die Cutting Machine, Graphtec Vinyl Cutter Graphtec FCX2000-120 Sizes and Measurement

FCX2000-180 (VC)

Flatbed Cutter, Table Top Cutter, Cardboard Cutter, Package Thick Paper Cutter, Sublimation Cutting Plotter, Vinyl Cutter, Vinyl Cutting Machine, Die Cutting Machine, Graphtec Vinyl Cutter Graphtec FCX2000-180 Sizes and Measurement

Features



STRONGER MEDIA HOLD DOWN

Graphtec-America-Cutting-Plotter-FCX2000 Vocumm 30 to 20 mm jpg.jpg

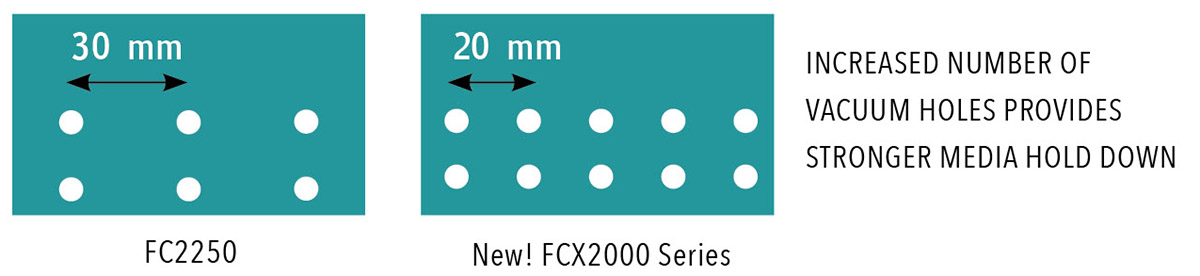

Distance between the holes has been improved from 30 mm on FC2250 Series to 20 mm on FCX2000 Series, as a result, FCX2000 Series provides stronger suction power to hold heavier and thicker medias down.

Flatbed Cutter, Table Top Cutter, Cardboard Cutter, Package Thick Paper Cutter, Sublimation Cutting Plotter, Vinyl Cutter, Vinyl Cutting Machine, Die Cutting Machine, Graphtec Vinyl Cutter Graphtec FCX2000 Vacuum Suction Stronger Media Hold Down Function Increase Number of Vacuum Holes Provides Stronger Media Hold Down

IMPROVED VACUUM SUCTION!



VACUUM SUCTION:

holds media with the use of external electric vacuum pump.  This is the preferred method for heavier and thicker media.  The Redesigned Cutting Table has increased hold-down capability by its increased number of vacuum holes.  This redesign is significantly valuable when cutting smaller objects that have less of surface area.

TWO PUMPS AVAILABLE:  110V HAS 1.5 HORSE POWER, 220V HAS 2.5 HORSE POWER

New Vacuum Suction parts: 59000-050, and 59000-060

Flatbed Cutter, Table Top Cutter, Cardboard Cutter, Package Thick Paper Cutter, Sublimation Cutting Plotter, Vinyl Cutter, Vinyl Cutting Machine, Die Cutting Machine, Graphtec Vinyl Cutter Graphtec FCX2000 Stronger Media Hold Down Function Increase Number of Vacuum Holes Provides Stronger Media Hold Down

Dual tool holder with 500 gf on tool 1 and 1,000 gf on tool 2

Flatbed Cutter, Table Top Cutter, Cardboard Cutter, Package Thick Paper Cutter, Sublimation Cutting Plotter, Vinyl Cutter, Vinyl Cutting Machine, Die Cutting Machine, Graphtec Vinyl Cutter Graphtec FCX2000 Dual Tool Holder With 500 GF on Tool 1 and 1000 gf on tool 2

Provided tools suitable for many applications

  • The FCX2000 series has 2 tool holder in the carriage.
  • Using 2 different kind of tool allows to do a different job
  • without exchanging a tool at the same time. it can increase work efficiency.

Tool Holders & Cutting/Creasing Tools

Dual Tool Holders which can hold a cutting blade and creasing tool — to produce creases/folds and cuts on the same run.  Maximum Cutting Force - Tool 1: 500 gf, Tool 2: 1,000 gf

Flatbed Cutter, Table Top Cutter, Cardboard Cutter, Package Thick Paper Cutter, Sublimation Cutting Plotter, Vinyl Cutter, Vinyl Cutting Machine, Die Cutting Machine, Graphtec Vinyl Cutter Graphtec FCX2000 Tool Holders and Cutting Creasing Tools

Intuitive 3.7” LCD display

Onboard control and settings are simplified using the equipped 3.7” LCD (240x128 dots) and tactile control panel.

Lope for cutting blade (PM-CT-001)

This standard accessory helps to easily adjust the extruded blade lengths for the PHP33 and PHP35 blade holders.

Flatbed Cutter, Table Top Cutter, Cardboard Cutter, Package Thick Paper Cutter, Sublimation Cutting Plotter, Vinyl Cutter, Vinyl Cutting Machine, Die Cutting Machine, Graphtec Vinyl Cutter Graphtec FCX2000 Lope for cutting blade standard accessory

Image 1: Improved and increased Y-bar rigidity

For precision cutting accuracy

Image 2: Safety enhancement

A new, dedicated emergency STOP switch is at the ready.  Supports a dedicated stop switch for stopping the machine when emergency case is occurred.

Image 3: Roll-media stocker

The FCX2000 comes equipped with a mounted roll-media stocker.  Supports media width up to 37.4” and weight up to 11 lbs.

<   Back to top



OFFLINE OPERATION

Flatbed Cutter, Table Top Cutter, Cardboard Cutter, Package Thick Paper Cutter, Sublimation Cutting Plotter, Vinyl Cutter, Vinyl Cutting Machine, Die Cutting Machine, Graphtec Vinyl Cutter Graphtec FCX2000 Offline Operation USB Flash Memory Easy to Use Easy to Read

Offline operation supported by use of USB flash memory

Cut and plot data is created with Cutting Master 4 or Graphtec Pro Studio. That saved data may be transferred to a USB flash memory and the cut plot data file can be selected from the USB on the FCX2000 using its menu operations. This simplified work-flow enables users to operate without being connected to the computer.

Data management using bar-code function with USB flash memory

When performing contour cutting, also known as “Print & Cut”, the cutting data is automatically selected from the prepared USB flash memory. The FCX2000 scans the bar code printed on the media then automatically performs the contour cutting job. This emerging method helps to prevent operator error of using incorrect data - thus improving workflow efficiency.

Flatbed Cutter, Table Top Cutter, Cardboard Cutter, Package Thick Paper Cutter, Sublimation Cutting Plotter, Vinyl Cutter, Vinyl Cutting Machine, Die Cutting Machine, Graphtec Vinyl Cutter Graphtec FCX2000 Operate Cutting Without Connection to PC Easy to Use for Designer and Operator to operate contour cutting through simple barcode operation


Enhanced ARMS (Advanced Registration Mark Sensing system) for improved productivity of P&C applications

  • Equipped the ARMS (Advanced Registration Mark Sensing system)6.0.
  • Easy and accurate cutting of pre-printed images using the cutting master 4 and etc.
  • Enables higher productivity of POP, stickers, and prototype cartons.

ARMS Copy function

After data is sent the first time, it can be copied multiple times without a PC. In the FCX2000 Series, the first four marks are scanned on the first sheet, and only the first mark in subsequent sheets. This improves productivity by shortening scan detection time.

Flatbed Cutter, Table Top Cutter, Cardboard Cutter, Package Thick Paper Cutter, Sublimation Cutting Plotter, Vinyl Cutter, Vinyl Cutting Machine, Die Cutting Machine, Graphtec Vinyl Cutter Graphtec FCX2000 Series ARMS Copy Function

Image 1: Enhanced ARMS (Advanced Registration Mark Sensing system) Version 6.0 for Improved Productivity of Contour Cutting Applications

The FXC2000 features Graphtec’s newest Advanced Registration Mark Sensing System Version 6.0 for even more improved contour cutting of your pre-printed graphics for package prototyping, reflective sheeting and many other professional rigid applications - using Cutting Master 4, Graphtec Pro Studio, and including most industry standard cutting software.

Image 2: Scanning matrix print copies

Image 3: Scanning cutting multiple (identical) copies, when only one sheet is able to fit the plotter table.

Flatbed Cutter, Table Top Cutter, Cardboard Cutter, Package Thick Paper Cutter, Sublimation Cutting Plotter, Vinyl Cutter, Vinyl Cutting Machine, Die Cutting Machine, Graphtec Vinyl Cutter Graphtec FCX2000 Scanning Cutting Multiple Identical Copies, when only one sheet is able to fit the plotter table

Reverse Side Cutting and Creasing Method

Cutting and creasing of pre-printed packaging graphics is possible on the reverse (non-printed) side of the sheet. This method of reverse side cutting and creasing prevents damage and marking of the printed side. This option is currently available using Cutting Master 4 or Graphtec Pro Studio software with the FCX2000.

Flatbed Cutter, Table Top Cutter, Cardboard Cutter, Package Thick Paper Cutter, Sublimation Cutting Plotter, Vinyl Cutter, Vinyl Cutting Machine, Die Cutting Machine, Graphtec Vinyl Cutter Graphtec FCX2000 Reverse Side Cutting and Creasing Method

Expanded Contour Cutting Area

This included function expands the print and cut area to include objects outside of the registration marks! Production efficiency is enhanced and media waste is reduced.

Supports Standard Crop Marks

Contour cutting pre-printed media is also possible using “standard crop marks.” This operation is available with the included Cutting Master 4 plug-in workflow.

Reversed Color Registration Marks

Registraiton marks are detectable when there is sufficient contrast against the mark and its background. Ultra glossy and reflective media offer challenges for accurate registration mark detection. With this reversed color output, the sufficient contrast is brought back for the ability to contour cut pre-printed ultra glossy and reflecting sheeting.

<   Back to top



Media Types

Type of media Thickness Support cutting blade FCX2000-60VC FCX2000-120VC FCX2000-180VC FCX2000-120ES
Self-adhesive marking film
(vinyl, fluorescent, reflective)
up to 0.25 mm CB09UB
Heavy paper/board
(pattern paper, oil board)
up to 0.5 mm CB15U, CB15U-K30
up to 1.0 mm CB30UC
Compressed foam sheet up to 0.8 mm CB15U-K30 -
Sandblast resist rubber up to 1.0 mm CB15U-K20
Cardboard (F/G flute) up to 1.1 mm CB30UC
CB15U-K30
Clear sheet for plastic boxes
up to 0.5 mm CB15U
up to 1.0 mm CB15U-K30 -
High-intensity reflective film up to 0.5 mm CB15UA -
up to 1.0 mm CB15UA-K30 -




<  Back to top
